Rack for Small Parts

"Gigant" Our Small Parts Rack provides a compact storage solution, more efficient material picking and with that better economy. Place it as a stand-alone unit at the workplace or in a pallet rack for efficient small part storage.


In its standard design, you can choose between 4 to 8 shelves with 70% opening and max. 200 kg per shelf, or 4-7 shelves with 100% opening and up to 150 kg per shelf.

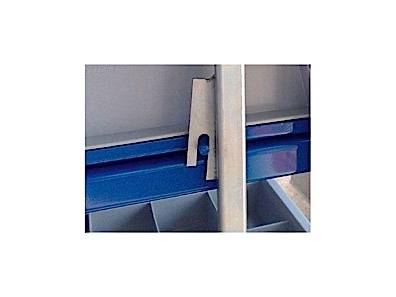

Available equipped with a design-protected lock that locks all the shelves apart from the one you are pulling out.
Fit the industrial bureau with small compartments plastic bins (Gigant art. no. 6135-0104) to give 72 storage spaces per shelf. In the complete bureau with 7 shelves, there are 504 compartments in an area corresponding to one pallet position. Now thats efficient storage.
We also have other bins in our range to suit your storage needs.
The dimensions of the industrial bureau permit placement in a pallet rack. 1, 2 or 3 in width depending on the section width of your pallet rack. This provides an efficient and ergonomic storage solution in a small area.
Available accessories include a tool panel or worktop.
Special solutions can be mesh shelves or completely covered to protect the contents from dust or why not create a mobile device with fork openings or castors on the device.
Dimensions:
880 x 1250 x 1550 mm (W x D x H)
Load area shelf: 800 x 1200 mm
Max. load:
200 kg/shelf at 70% opening.
150 kg/shelf at 100% opening.
Standard colours:
Grey body RAL 7037
Blue opening unit RAL 5005
Galvanised durable shelves.
Contact us or your nearest dealer and we will help you.

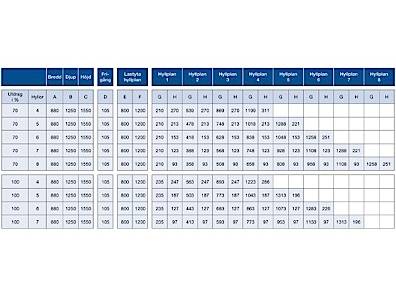

Art. no.   (17043-0102) (17042-0103)
70% opening, max load 200 kg/shelf
Design   With anti-tilt lock Without anti-tilt lock
Height x Width x Depth mm 1550 x 880 x 1250
No. of shelves ea 4 4

Art. no.   (17043-0201) (17042-0202)
No. of shelves ea 5 5

Art. no.   (17043-0300) (17042-0301)
No. of shelves ea 6 6

Art. no.   (17043-0409) (17042-0400)
No. of shelves ea 7 7

Art. no.   (17043-0508) (17042-0509)
No. of shelves ea 8 8






Art. no.   (17045-0100) (17044-0101)
100% opening, max load 150 kg/shelf
Design   With anti-tilt lock Without anti-tilt lock
Height x Width x Depth mm 1550 x 880 x 1250
No. of shelves ea 4 4

Art. no.   (17045-0209) (17044-0200)
No. of shelves ea 5 5

Art. no.   (17045-0308) (17044-0309)
No. of shelves ea 6 6

Art. no.   (17045-0407) (17044-0408)
No. of shelves ea 7 7


Get a quote

  • Small Parts Rack, 70% Opening, Max Load 200kg/Shelf, 4 Shelves, With Anti-Tilt Lock £ 1591.16 (17043-0102)
  • Small Parts Rack, 70% Opening, Max Load 200kg/Shelf, 4 Shelves, Without Anti-Tilt Lock £ 1373.68 (17042-0103)
  • Small Parts Rack, 70% Opening, Max Load 200kg/Shelf, 5 Shelves, With Anti-Tilt Lock £ 1831.56 (17043-0201)
  • Small Parts Rack, 70% Opening, Max Load 200kg/Shelf, 5 Shelves, Without Anti-Tilt Lock £ 1602.61 (17042-0202)
  • Small Parts Rack, 70% Opening, Max Load 200kg/Shelf, 6 Shelves, With Anti-Tilt Lock £ 2089.14 (17043-0300)
  • Small Parts Rack, 70% Opening, Max Load 200kg/Shelf, 6 Shelves, Without Anti-Tilt Lock £ 1831.56 (17042-0301)
  • Small Parts Rack, 70% Opening, Max Load 200kg/Shelf, 7 Shelves, With Anti-Tilt Lock £ 2340.97 (17043-0409)
  • Small Parts Rack, 70% Opening, Max Load 200kg/Shelf, 7 Shelves, Without Anti-Tilt Lock £ 2060.51 (17042-0400)
  • Small Parts Rack, 70% Opening, Max Load 200kg/Shelf, 8 Shelves, With Anti-Tilt Lock £ 2604.25 (17043-0508)
  • Small Parts Rack, 70% Opening, Max Load 200kg/Shelf, 8 Shelves, Without Anti-Tilt Lock £ 2289.45 (17042-0509)
  • Small Parts Rack, 100% Opening, Max Load 150 kg/Shelf, 4 shelves, With Anti-Tilt Lock £ 2489.80 (17045-0100)
  • Small Parts Rack, 100% Opening, Max Load 150 kg/Shelf, 4 shelves, Without Anti-Tilt Lock £ 2300.90 (17044-0101)
  • Small Parts Rack, 100% Opening, Max Load 150 kg/Shelf, 5 shelves, With Anti-Tilt Lock £ 2919.05 (17045-0209)
  • Small Parts Rack, 100% Opening, Max Load 150 kg/Shelf, 5 shelves, Without Anti-Tilt Lock £ 2730.18 (17044-0200)
  • Small Parts Rack, 100% Opening, Max Load 150 kg/Shelf, 6 shelves, With Anti-Tilt Lock £ 3376.95 (17045-0308)
  • Small Parts Rack, 100% Opening, Max Load 150 kg/Shelf, 6 shelves, Without Anti-Tilt Lock £ 3142.26 (17044-0309)
  • Small Parts Rack, 100% Opening, Max Load 150 kg/Shelf, 7 shelves, With Anti-Tilt Lock £ 3817.65 (17045-0407)
  • Small Parts Rack, 100% Opening, Max Load 150 kg/Shelf, 7 shelves, Without Anti-Tilt Lock £ 3554.38 (17044-0408)
