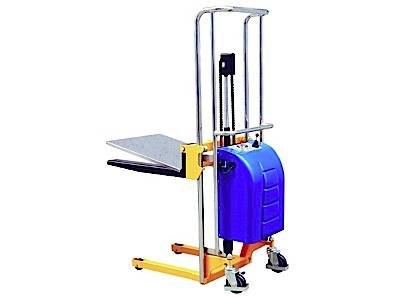

Hand-operated mini stacker
Hand operated mini stacker that is battery powered. Equipped with fixed forks and hard chromium plated removable platform for versatile handling. Used to handle half-pallets and/or as a mobile lift table.
The stacker is equipped with a large battery 74Ah/12V, separate charger, electric motor (DC) and pump for intensive operations and increased ergonomics. Integrated overload valve provides overload protection. Long handle for safe operations. Foot brake on the rear swivel castors.
| Art. no. | 18193 | (-0108) |
| Max. load | kg | 400 |
| Min. lift height | mm | 80 |
| Max. lift height | mm | 1500 |
| L x W x H | mm | 1100 x 580 x 1620 |
| Lifting speed | mm/sec | 60 |
| Fork width, total/fork | mm | 550/120 |
| Fork length | mm | 610 |
| Platform, L x W | mm | 610 x 580 |
| Fork wheel, polyurethane | mm | 75 x 20 |
| Steering wheel, polyurethane | mm | 125 x 35 |
| Weight | kg | 145 |
