Stacking truck BT
"BT" SHM 080, BT SHL 080 Stacker. The simplest option for safe and stable stacking of goods. The stacking truck is ideal for small stores with infrequent stacking at a relatively low level.
Designed for full pallets. Fully-welded with frame of beam members and heavy-duty fork carriage. Bearing mounted nylon wheels and parking brake.

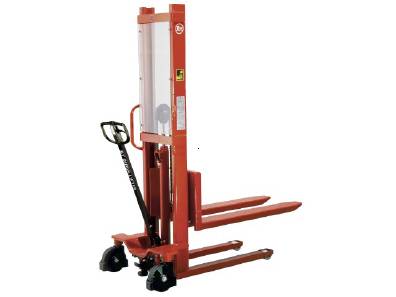

SHM 080 for manual operation through manual pumping.

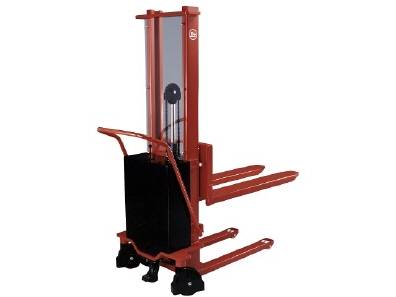

SHL 080 battery operation for ergonomic handling of heavier and more frequent lifting.
| Art. no. | 6254 | (-0109) | (-0208) |
| BT | No | SHM 080 | SHL 080 |
| Max. load | kg | 800 | 800 |
| Max. lift height | mm | 1600 | 1600 |
| Fork height, lowered | mm | 85 | 85 |
| Lift height/pump stroke | mm | 42/20 | - |
| Lifting height | m/sec | - | 0,06/0,04 |
| Fork, L x W | mm | 1150×160 | 1150×160 |
| Total width | mm | 540 | 540 |
| Overall height | mm | 1990 | 1990 |
| Wheel dim. steering wheel | mm | 200×50 | 200×50 |
| Wheel dim. support arm wheel | mm | 75×75 | 75×75 |
| Truck battery | V/Ah | - | 12/110 |
| Charger | V/A | - | 12/20 |
| Turning radius | mm | 1210 | 1210 |
| Weight excl. battery | kg | 256 | 295 |
